Power Integrations BRD1167C-TL

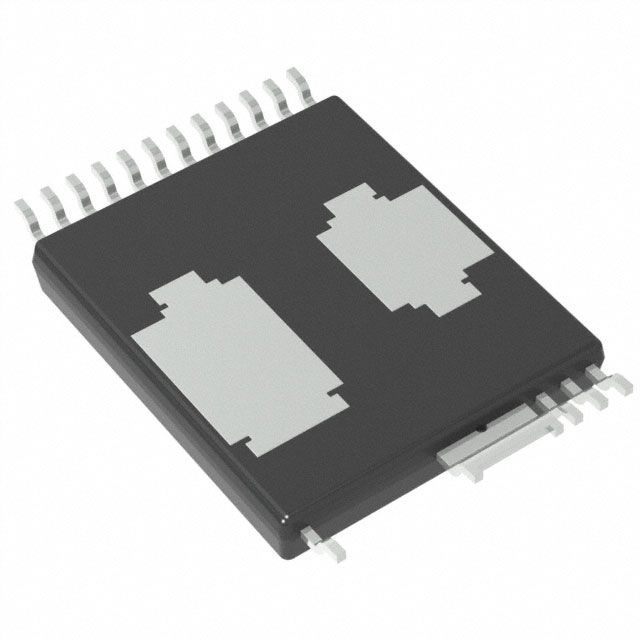

BRD1167C-TL
Part No.:
BRD1167C-TL
Manufacturer:
Power Integrations
Category:
PMIC - Full, Half-Bridge Drivers
Package:
24-PowerSMD Module (0.425, 10.80mm Width), 17 Leads
Datasheet:
LINKCOST DEVICE SOLUTION LIMITEDBRD1167C-TL.pdf
Description:
400W MOTOR DRIVER POWER IC
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Product Comparison
  • Related Categories
Packaging:
Tape & Reel (TR),Cut Tape (CT)
Series:
BridgeSwitch
ProductStatus:
Active
OutputConfiguration:
Half Bridge
Applications:
DC Motors, General Purpose
Interface:
Logic, PWM
LoadType:
Capacitive and Resistive
Technology:
IGBT
RdsOn(Typ):
470mOhm LS + HS
Current-Output/Channel:
11.5A
Current-PeakOutput:
-
Voltage-Supply:
3.3V ~ 5V
Voltage-Load:
50V
OperatingTemperature:
-40°C ~ 150°C (TJ)
Features:
Bootstrap Circuit
FaultProtection:
Current Limiting, Over Temperature, UVLO
MountingType:
Surface Mount
Category:
PMIC - Full, Half-Bridge Drivers
Datasheet:
LINKCOST DEVICE SOLUTION LIMITEDBRD1167C-TL.pdf
