TVS - Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

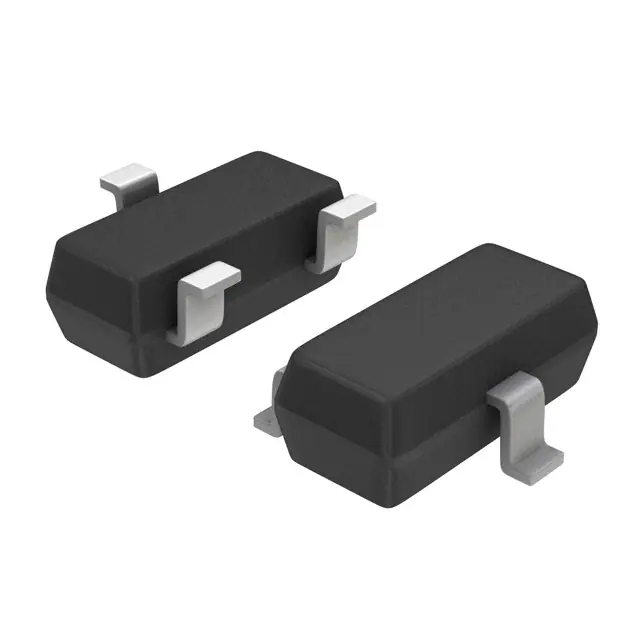

SM36-02HTGTVS DIODE 36VWM 52VC SOT23-3 |
2,737 | - |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SM, SPA® | Active | Zener | 2 | - | 36V (Max) | - | 52V | 4A (8/20µs) | 400W | No | Automotive | 50pF @ 1MHz | -40°C ~ 150°C | Surface Mount |
|
|
AQ15-02HTGTVS DIODE 15VWM 30VC SOT23-3 |
5,988 | - |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, AQ, SPA® | Active | Zener | 2 | - | 15V (Max) | 16.7V | 30V | 15A (8/20µs) | 500W | No | Automotive, CAN | 85pF @ 1MHz | -40°C ~ 150°C (TA) | Surface Mount |
|
P4SMA550ATVS DIODE 495VWM 760VC DO214AC |
3,545 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | P4SMA | Active | Zener | 1 | - | 495V | 522.5V | 760V | 500mA | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
P4SMA56CATVS DIODE 47.8VWM 77VC DO214AC |
3,511 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | P4SMA | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 5.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|
ESDS314DBVRTVS DIODE 3.6VWM 6.5VC SOT23-5 |
2,923 | - |
|
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.6V (Max) | 4.5V | 6.5V (Typ) | 25A (8/20µs) | 170W | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
CDSOT23-T12LCTVS DIODE 12VWM 25.9VC SOT23-3 |
2,079 | - |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V | 13.3V | 25.9V | 27A (8/20µs) | 500W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C | Surface Mount |
|
SMPC26ANHM3/HTVS DIODE 26VWM 42.1VC TO277A |
2,848 | - |
|
Datasheet |
TO-277, 3-PowerDFN | Tape & Reel (TR) | Automotive, AEC-Q101, TransZorb® | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 35.6A | 1500W (1.5kW) | No | Automotive, Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
P6SMB220ATVS DIODE 185VWM 328VC DO214AA |
3,627 | - |
|
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | P6SMB | Active | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMPC28ANHM3/ITVS DIODE 28VWM 45.4VC TO277A |
3,517 | - |
|
Datasheet |
TO-277, 3-PowerDFN | Tape & Reel (TR) | Automotive, AEC-Q101, TransZorb®, eSMP™ | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 33A | 1500W (1.5kW) | No | Automotive, Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
P4KE400CATVS DIODE 342VWM 548VC DO204AL |
3,899 | - |
|
Datasheet |
DO-204AL, DO-41, Axial | Tape & Reel (TR),Cut Tape (CT) | P4KE | Active | Zener | - | 1 | 342V | 380V | 548V | 750mA | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
SMBJ6.0AE3/TR13TVS DIODE 6VWM 10.3VC SMBJ |
3,043 | - |
|
Datasheet |
DO-214AA, SMB | Tape & Reel (TR) | - | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|
P6KE18CA-E3/54TVS DIODE 15.3VWM 25.2VC DO204AC |
2,612 | - |
|
Datasheet |
DO-204AC, DO-15, Axial | Cut Tape (CT),Tape & Box (TB) | TransZorb® | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 23.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SMB10J90CA-TPTVS DIODE 90VWM 146VC DO214AA |
2,661 | - |
|
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 90V | 100V | 146V | 6.85A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
P4SMA300CATVS DIODE 256VWM 414VC DO214AC |
3,481 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | P4SMA | Active | Zener | - | 1 | 256V | 285V | 414V | 1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|
SM15T100A-M3/9ATTVS DIODE 85.5VWM 137VC DO214AB |
2,179 | - |
|
Datasheet |
DO-214AB, SMC | Tape & Reel (TR) | SM15T, TransZorb® | Active | Zener | 1 | - | 85.5V | 95V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|

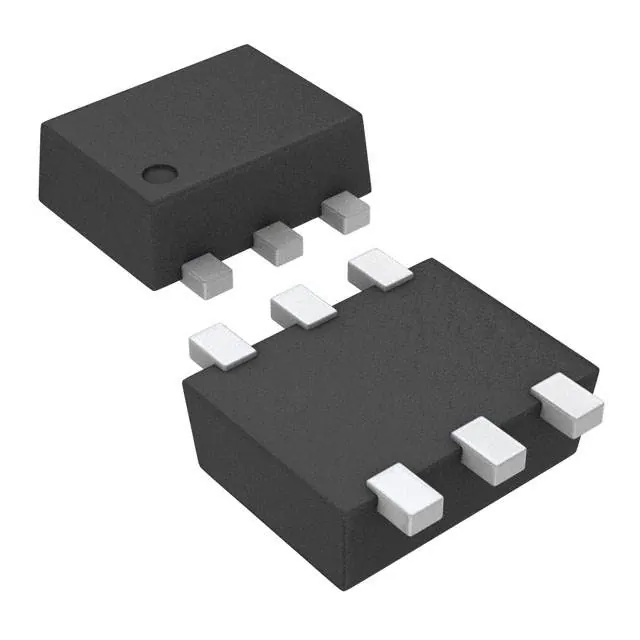

TPD2E1B06DRLRTVS DIODE 5.5VWM 15VC 6SOT |
377,133 | - |
|
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Steering (Rail to Rail) | - | 2 | 5.5V (Max) | 7V | 15V (Typ) | 2.5A (8/20µs) | 35W | No | General Purpose | - | -40°C ~ 125°C (TA) | Surface Mount |
|
|
SM15T10A-M3/9ATTVS DIODE 8.55VWM 14.5VC DO214AB |
2,909 | - |
|
Datasheet |
DO-214AB, SMC | Tape & Reel (TR) | SM15T, TransZorb® | Active | Zener | 1 | - | 8.55V | 9.5V | 14.5V | 103A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SM15T12A-M3/9ATTVS DIODE 10.2VWM 16.7VC DO214AB |
2,008 | - |
|
Datasheet |
DO-214AB, SMC | Tape & Reel (TR) | SM15T, TransZorb® | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 90A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
SMCJ15CATVS DIODE 15VWM 24.4VC SMC |
3,363 | - |
|
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMCJ | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 61.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SM15T150A-M3/9ATTVS DIODE 128VWM 207VC DO214AB |
3,314 | - |
|
Datasheet |
DO-214AB, SMC | Tape & Reel (TR) | SM15T, TransZorb® | Active | Zener | 1 | - | 128V | 143V | 207V | 7.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
