Strain Gauges
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | PatternType | StrainRange | Resistance | ResistanceTolerance | Length-Active | Length-OverallPattern | Length-Overall | Width-Active | Width-OverallPattern | Width-Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3300-0301BI-DIRECTION BEND SENSOR 3 INCH |
2,623 | - |
|
Datasheet |
Bag | Bend Sensor® | Active | Linear | - | - | - | - | - | 3.15 (80.0mm) | - | - | 0.36 (9.1mm) |
|

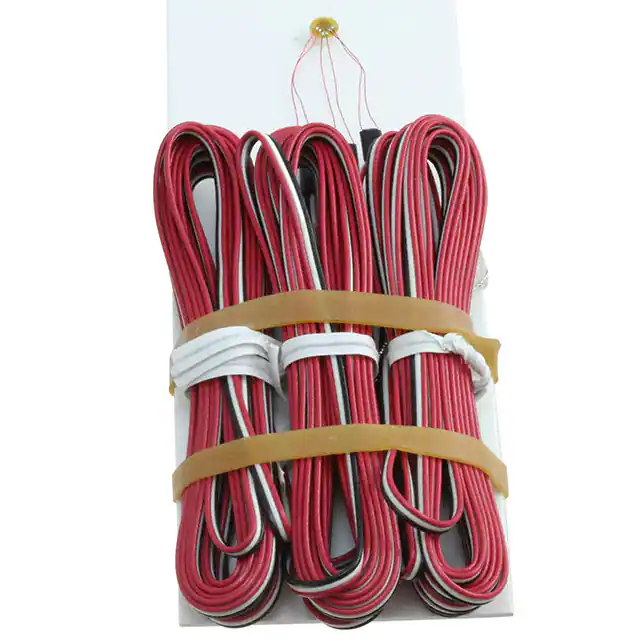

MMF323482C2A-06-G1350-120/SP70 STACKED RO |
2,219 | - |
|
Datasheet |
Bulk | C2A | Obsolete | Stacked Rosette | ±3% | 120 Ohms | ±0.6% | 0.039 (1.00mm) per section | 0.144 (3.66mm) | 0.20 (5.1mm) | 0.045 (1.14mm) per section | 0.147 (3.73mm) | 0.20 (5.1mm) |
|
DT 3617-4STRAIN SENSOR/SHEAR STRAIN MEASU |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56 (14.2mm) | - | - | 0.56 (14.2mm) |
|
|
DT 3617-1STRAIN SENSOR/SHEAR STRAIN MEASU |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56 (14.2mm) | - | - | 0.56 (14.2mm) |
|
|
DT 3617-2STRAIN SENSOR/SHEAR STRAIN MEASU |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56 (14.2mm) | - | - | 0.56 (14.2mm) |
|
|
DT 3617-3STRAIN SENSOR/SHEAR STRAIN MEASU |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56 (14.2mm) | - | - | 0.56 (14.2mm) |
|
|
DT 3625-3STRAIN SENSOR/MINATURE SIZE |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45 (11.4mm) | - | - | 0.25 (6.35mm) |
|
DT 3625-1STRAIN SENSOR/MINATURE SIZE |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45 (11.4mm) | - | - | 0.25 (6.35mm) |
|

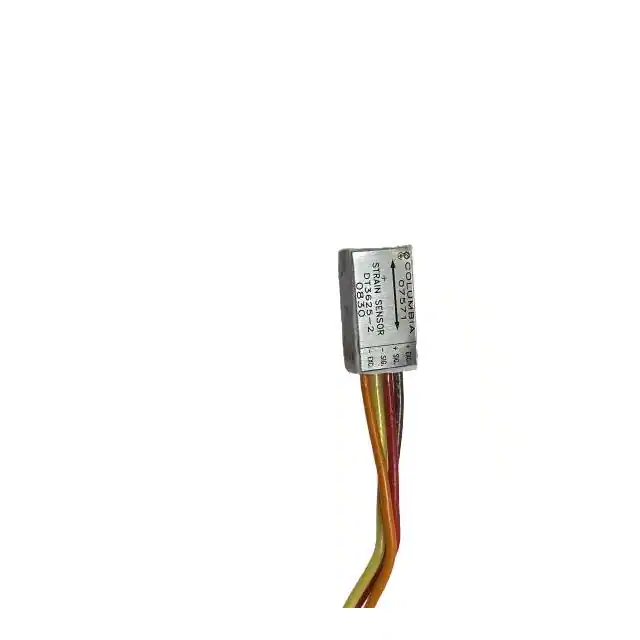

DT 3625-2STRAIN SENSOR/MINATURE SIZE |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45 (11.4mm) | - | - | 0.25 (6.35mm) |
|
|
DT 3625 5STRAIN SENSOR/MINATURE SIZE |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45 (11.4mm) | - | - | 0.25 (6.35mm) |
|
|
DT 3625 4STRAIN SENSOR/MINATURE SIZE |
200 | - |
|
Datasheet |
Tape & Box (TB) | - | Active | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45 (11.4mm) | - | - | 0.25 (6.35mm) |
|

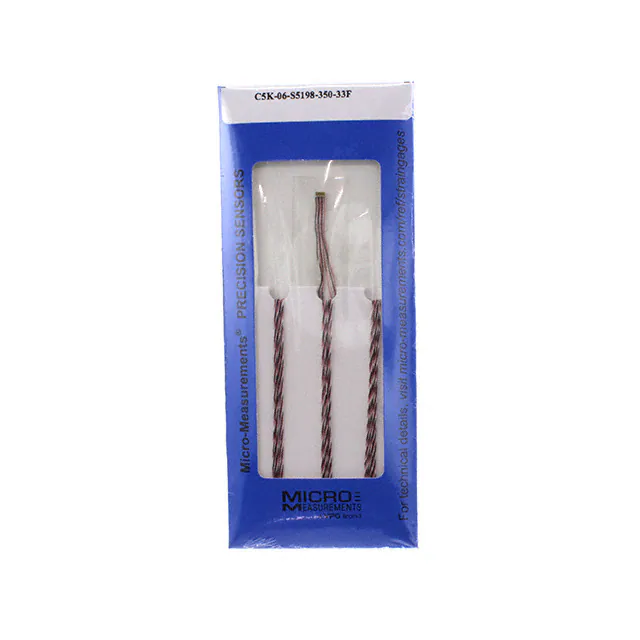

MMF402103C5K-06-S5198-350-33F |
2,974 | - |
|
Datasheet |
Box | C5K | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014 (0.36mm) per section | 0.071 (1.81mm) | 0.09 (2.2mm) | 0.012 (0.30mm) per section | 0.143 (3.63mm) | 0.15 (3.9mm) |
|
MMF402062C5K-06-S5198-350-39F |
2,461 | - |
|
Datasheet |
Box | C5K | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014 (0.36mm) per section | 0.071 (1.81mm) | 0.09 (2.2mm) | 0.012 (0.30mm) per section | 0.143 (3.63mm) | 0.15 (3.9mm) |
|
MMF404864STRAIN GAUGE 350OHM LINEAR |
2,188 | - |
|
Box | CEA | Active | Linear | - | 350 Ohms | - | - | - | - | - | - | - | |
|

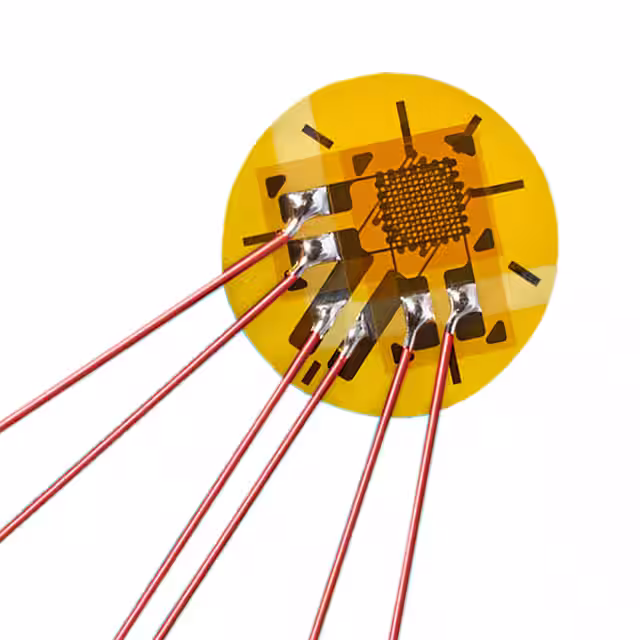

MMF336118C2K-06-G1350-350/SP70 STACKED RO |
2,096 | - |
|
Datasheet |
Bulk | C2K | Active | Stacked Rosette | ±1.5% | 350 Ohms | ±0.8% | 0.039 (1.00mm) per section | 0.144 (3.66mm) | 0.20 (5.1mm) | 0.045 (1.14mm) per section | 0.147 (3.73mm) | 0.20 (5.1mm) |
|
MMF404326STRAIN GAUGE 350OHM LINEAR 1=5PC |
2,944 | - |
|
Datasheet |
Bulk | CEA | Active | Linear | ±5% | 350 Ohms | ±0.3% | 0.125 (3.18mm) | 0.275 (6.99mm) | 0.38 (9.7mm) | 0.100 (2.54mm) | 0.120 (3.05mm) | 0.19 (4.8mm) |
|

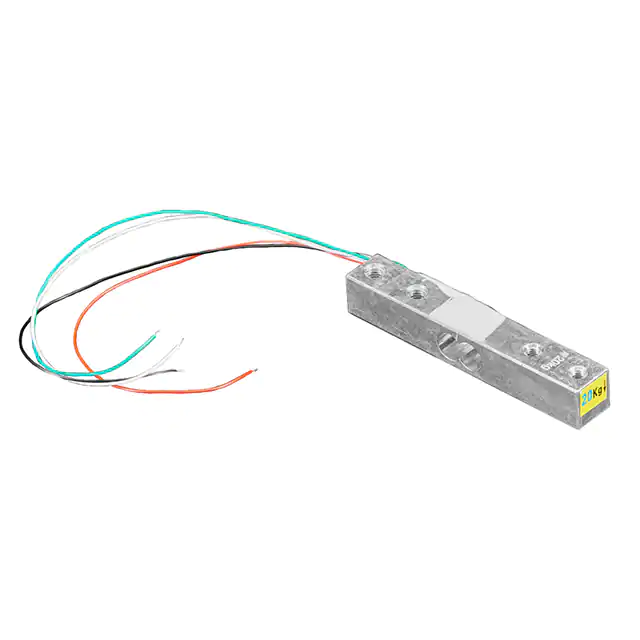

4543STRAIN GAUGE LOAD CELL - 4 WIRES |
2,499 | - |
|
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - |
|
MMF402184C5K-06-S5145-350-39F |
2,589 | - |
|
Datasheet |
Box | C5K | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030 (0.76mm) | 0.095 (2.41mm) | 0.12 (3.1mm) | 0.063 (1.60mm) | 0.063 (1.60mm) | 0.10 (2.6mm) |
|
|
MMF403735C5K-13-S5145-350-39F |
2,287 | - |
|
Datasheet |
Box | C5K | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030 (0.76mm) | 0.095 (2.41mm) | 0.12 (3.1mm) | 0.063 (1.60mm) | 0.063 (1.60mm) | 0.10 (2.6mm) |
|

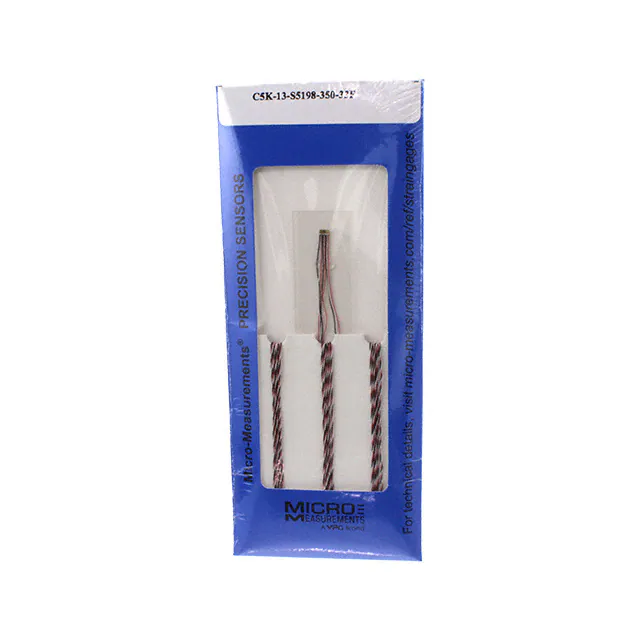

MMF403112C5K-13-S5198-350-33F |
3,538 | - |
|
Datasheet |
Box | C5K | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014 (0.36mm) per section | 0.071 (1.81mm) | 0.09 (2.2mm) | 0.012 (0.30mm) per section | 0.143 (3.63mm) | 0.15 (3.9mm) |
