Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DME2P12K-FCAP FILM 0.12UF 10% 250VDC RAD |
2,542 | - |
|
Datasheet |
Radial | Bulk | DME | Active | 0.12 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
LDECC3100JA5N00CAP FILM 0.1UF 5% 50VDC 1812 |
1,415 | - |
|
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | LDE | Active | 0.1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185 L x 0.130 W (4.70mm x 3.30mm) | 0.094 (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 |
|
ECH-U1103JC9CAP FILM 10000PF 5% 100VDC 1913 |
1,626 | - |
|
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 10000 pF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
R46KI3470DQP2MCAP FILM 0.47UF 20% 560VDC RAD |
1,360 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.693 (17.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
FKP1U013305D00MSC9CAP FILM 3300PF 20% 2KVDC RAD |
2,018 | - |
|
Datasheet |
Radial | Bulk | - | Active | 3300 pF | ±20% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
SMDTC02150TA00MQ00CAP FILM 0.015UF 20% 63VDC 2824 |
1,465 | - |
|
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.015 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.283 L x 0.240 W (7.20mm x 6.10mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|

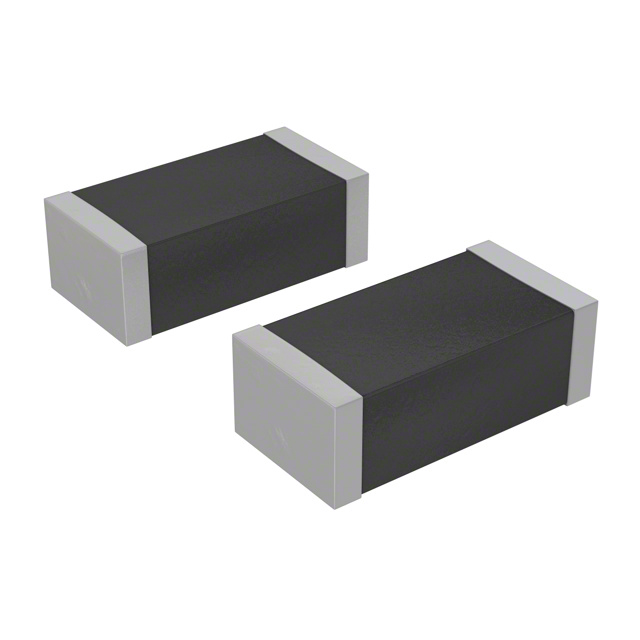

FCP1206H103G-H2CAP FILM 10000PF 2% 50VDC 1206 |
2,990 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 10000 pF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | High Frequency, Switching | - |
|
SMDTD02100KA00MP00CAP FILM 10000PF 20% 100VDC 1812 |
1,002 | - |
|
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 10000 pF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H332JB5CAP FILM 3300PF 5% 50VDC 1206 |
2,512 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 3300 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
MKP1O123304D00JSC9CAP FILM 0.033UF 5% 1KVDC RAD |
3,157 | - |
|
Datasheet |
Radial | Bulk | - | Active | 0.033 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
LDBCA1680JC5N0CAP FILM 6800PF 5% 50VDC 1206 |
3,000 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LDB | Active | 6800 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130 L x 0.067 W (3.30mm x 1.70mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C333JB5CAP FILM 0.033UF 5% 16VDC 1206 |
1,349 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.033 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
BFC237075224CAP FILM 0.22UF 10% 63VDC RADIAL |
1,052 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | MKT370 | Active | 0.22 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.200 (5.08mm) | Automotive | AEC-Q200 |
|
ECH-U1H182GB5CAP FILM 1800PF 2% 50VDC 0805 |
5,667 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 1800 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H681GB5CAP FILM 680PF 2% 50VDC 0805 |
2,987 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 680 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H152GB5CAP FILM 1500PF 2% 50VDC 0805 |
2,209 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 1500 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1H124JC9CAP FILM 0.12UF 5% 50VDC 2416 |
2,021 | - |
|
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Obsolete | 0.12 µF | ±5% | - | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.079 (2.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C393JB5CAP FILM 0.039UF 5% 16VDC 1206 |
1,497 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.039 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H331GB5CAP FILM 330PF 2% 50VDC 0805 |
1,479 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 330 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|

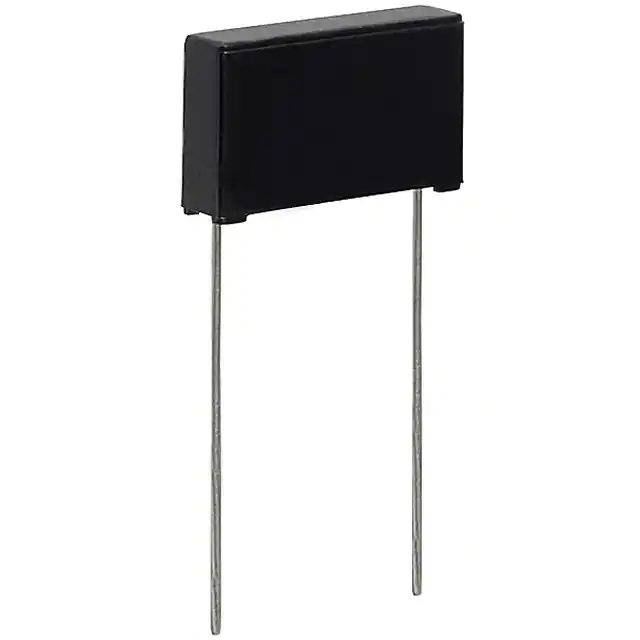

ECQ-U2A182MVCAP FILM 1800PF 20% 250VAC RAD |
1,261 | - |
|
Datasheet |
Radial | Bulk | ECQ-UV | Obsolete | 1800 pF | ±20% | 250V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.689 L x 0.157 W (17.50mm x 4.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
