Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMR5104J50J01L16.5CBULKCAP FILM 0.1UF 5% 50VDC RADIAL |
1,988 | - |
|
Datasheet |
Radial | Bulk | SMR | Active | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
PME271Y422MR30CAP FILM 2200PF 20% 1KVDC RADIAL |
37,378 | - |
|
Datasheet |
Radial | Bulk | PME271Y | Active | 2200 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531 L x 0.154 W (13.50mm x 3.90mm) | 0.295 (7.50mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | Y2 |
|
PFR5471J100J11L4BULKCAP FILM 470PF 5% 100VDC RADIAL |
1,879 | - |
|
Datasheet |
Radial | Bulk | PFR | Active | 470 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
25MU105MA23216CAP FILM 1UF 20% 25VDC 1206 |
5,056 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 1 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.063 (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
PME271YA4100MR30CAP FILM 1000PF 20% 1KVDC RADIAL |
2,965 | - |
|
Datasheet |
Radial | Bulk | PME271Y | Active | 1000 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531 L x 0.154 W (13.50mm x 3.90mm) | 0.295 (7.50mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | Y2 |
|

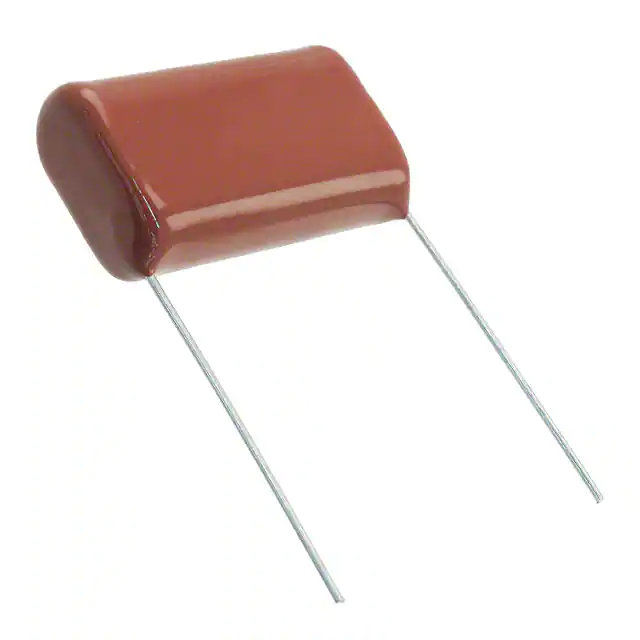

ECQ-E6105KFCAP FILM 1UF 10% 630VDC RADIAL |
9,795 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.492 W (31.00mm x 12.50mm) | 0.902 (22.90mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
MKY22W31805G00KSSDCAP FILM 0.18UF 10% 300VAC RAD |
6,390 | - |
|
Datasheet |
Radial | Bulk | - | Active | 0.18 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 |
|

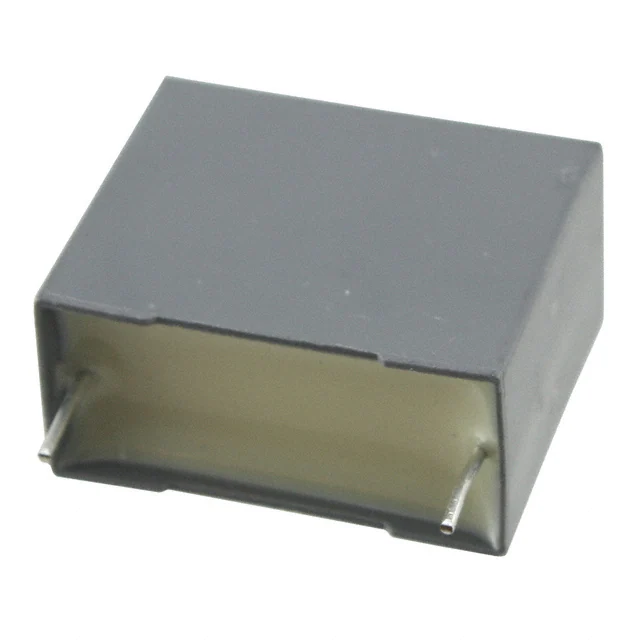

R46KN422000P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
39,873 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.512 W (26.50mm x 13.00mm) | 0.870 (22.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R76UN23304040JCAP FILM 0.033UF 5% 2KVDC RADIAL |
1,899 | - |
|
Datasheet |
Radial | Bulk | R76 | Active | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

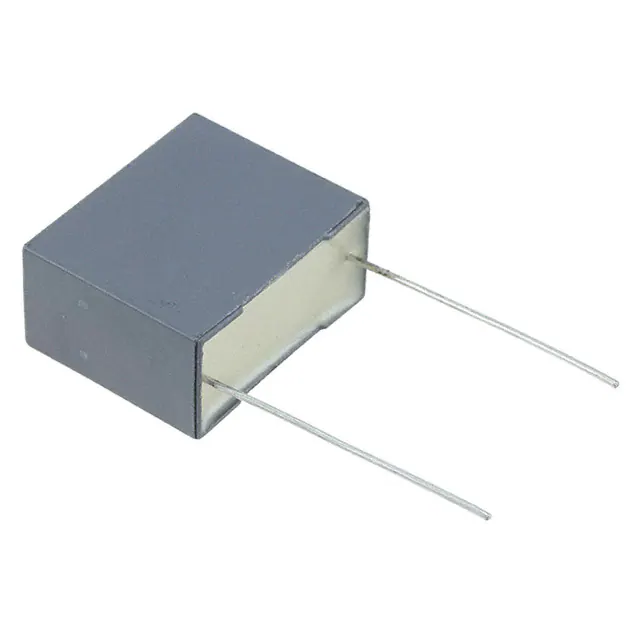

R46KN422040P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
1,246 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.512 W (26.50mm x 13.00mm) | 0.870 (22.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
F861DP155K310ZLH0JCAP FILM 1.5UF 10% 310VAC RADIAL |
5,870 | - |
|
Datasheet |
Radial | Bulk | F861 | Active | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
PHE426HD7100JR06L2CAP FILM 1UF 5% 250VDC RADIAL |
3,136 | - |
|
Datasheet |
Radial | Bulk | PHE426 | Active | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
MMK5105K50J02L4BULKCAP FILM 1UF 10% 50VDC RADIAL |
1,409 | - |
|
Datasheet |
Radial | Box | MMK | Active | 1 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
SMR5224J50J02L16.5CBULKCAP FILM 0.22UF 5% 50VDC RADIAL |
5,307 | - |
|
Datasheet |
Radial | Bulk | SMR | Active | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
 Series Straight 18x10.jpg)
|
ECW-F2W155JACAP FILM 1.5UF 5% 450VDC RADIAL |
83,520 | - |
|
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.421 W (18.80mm x 10.70mm) | 0.681 (17.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
BFC233860222CAP FILM 2200PF 20% 1KVDC RADIAL |
10,033 | - |
|
Datasheet |
Radial | Bulk | MKP338 6 | Active | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 |
|
B32023A3154M000CAP FILM 0.15UF 20% 1.5KVDC RAD |
15,405 | - |
|
Datasheet |
Radial | Bulk | B3202* - Y2 Standard | Active | 0.15 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 |
|

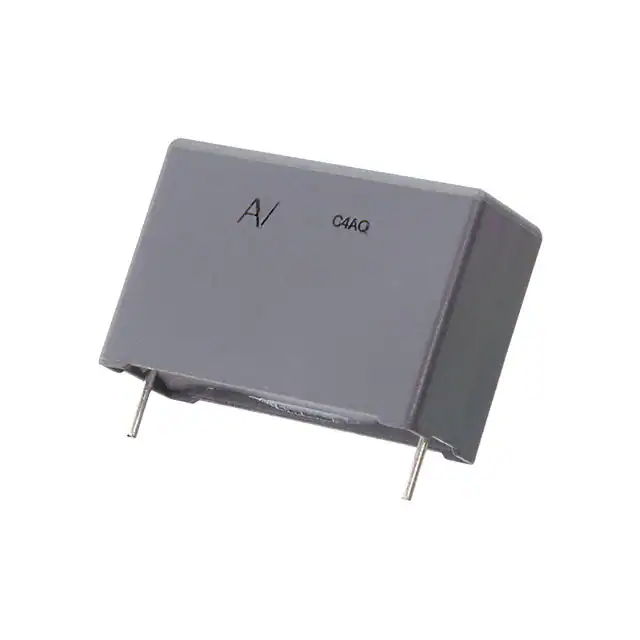

C4AQSBU4100A1WJCAP FILM 1UF 5% 1.5KVDC RADIAL |
2,160 | - |
|
Datasheet |
Radial | Bulk | C4AQ | Active | 1 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQSBU4150A1XJCAP FILM 1.5UF 5% 1.5KVDC RADIAL |
1,042 | - |
|
Datasheet |
Radial | Bulk | C4AQ | Active | 1.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 17.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

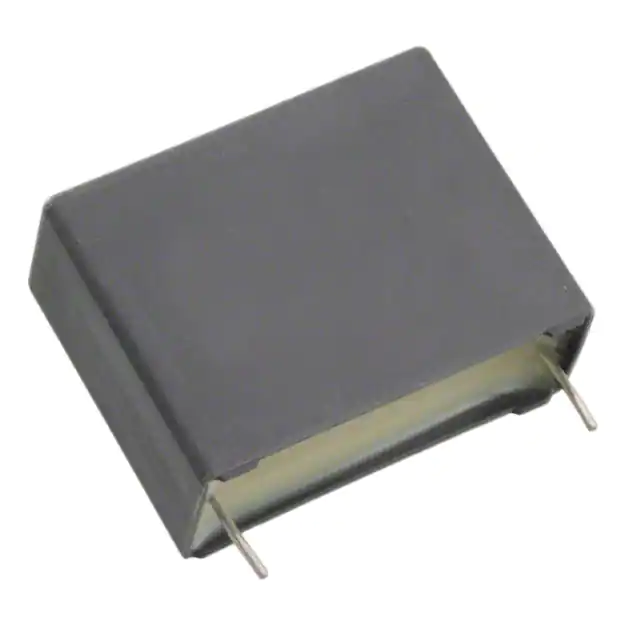

R46KR422000M2MCAP FILM 2.2UF 20% 560VDC RADIAL |
1,970 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
