Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41CS12VDCRELAY AUTO SPDT 12VDC PCB |
2,070 | - |
|
Datasheet |
Tube | A4 | Active | Non Latching | 82.8 mA | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|

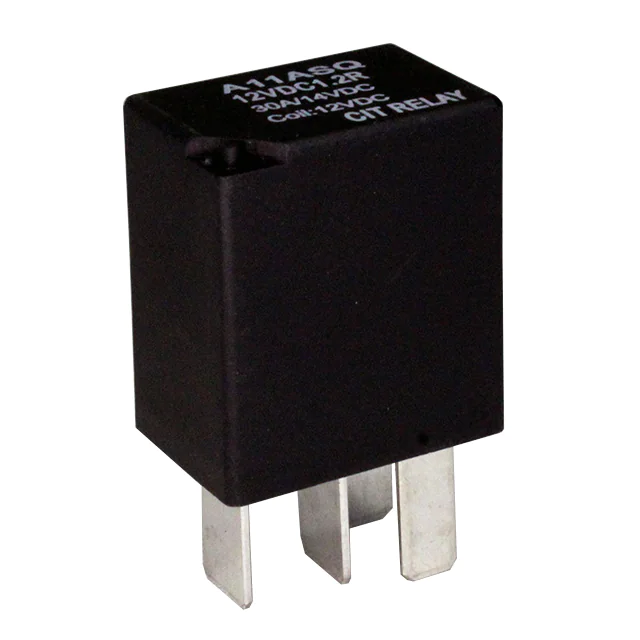

A11ASQ12VDC1.2RRELAY AUTO SPST 12VDC QC RESISTO |
4,404 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|

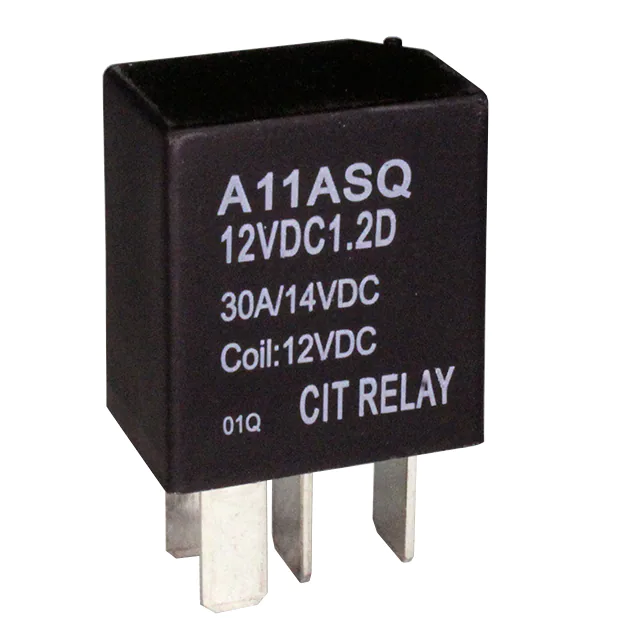

A11ASQ12VDC1.2DRELAY AUTO SPST 12VDC QC DIODE |
1,438 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|

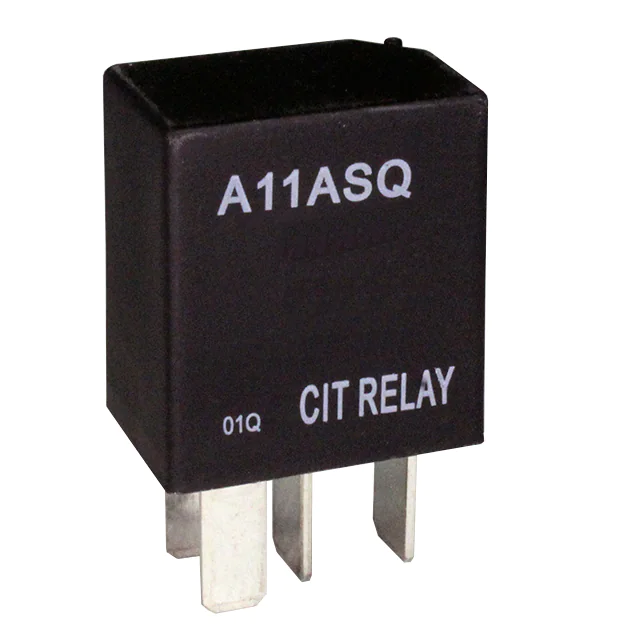

A11ASQ24VDC1.2RELAY AUTO SPST 24VDC QC |
1,025 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|

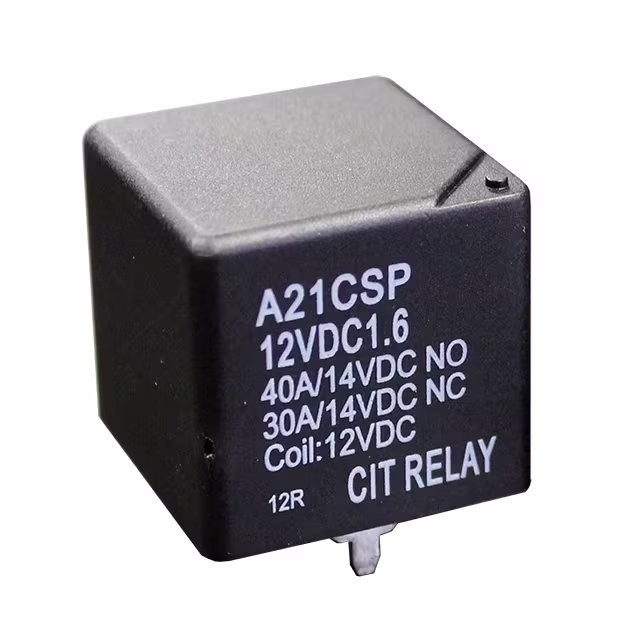

A21CSP12VDC1.6RRELAY AUTO SPDT 12VDC PCB RESIST |
1,811 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|

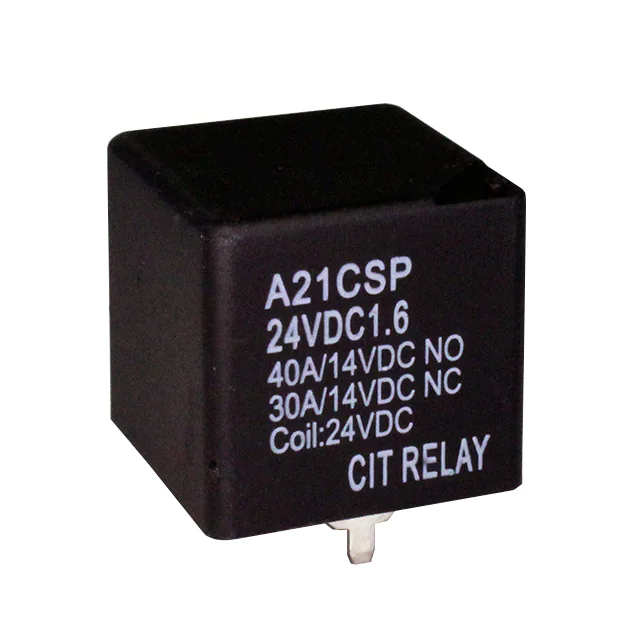

A21CSP24VDC1.6RELAY AUTO SPDT 24VDC PCB |
1,758 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|

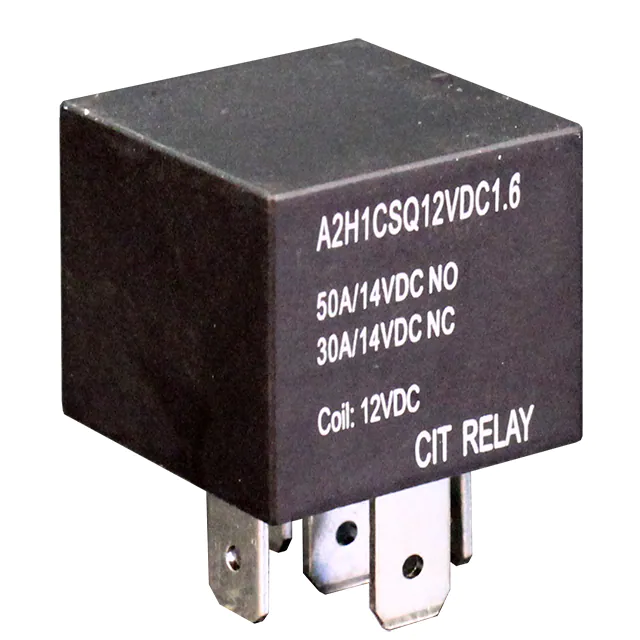

A2H1CSQ12VDC1.6RRELAY QC SPDT SEALED 50A 12VDC R |
1,355 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

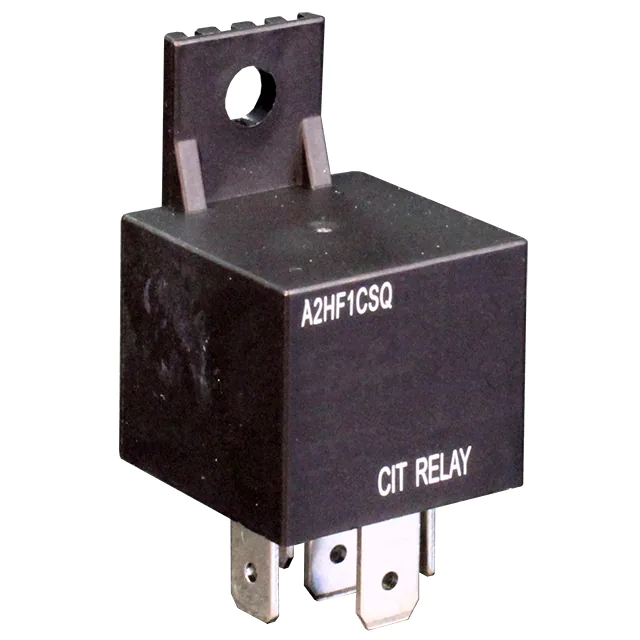

A2HF1CSQ24VDC1.6DRELAY FLANGE QC SPDT SEALED 50A |
622 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

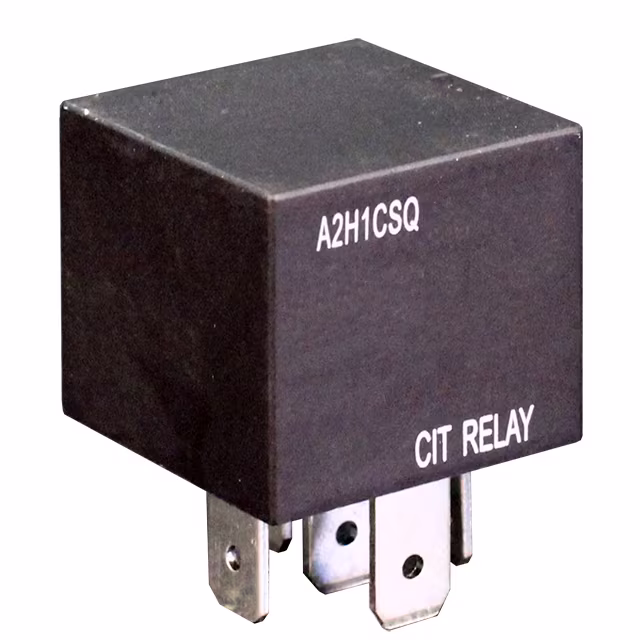

A2H1CSQ24VDC1.6DRELAY QC SPDT SEALED 50A 24VDC D |
450 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A61CS12VDC1.3RELAY AUTO SPDT 30A 12VDC PCB |
251 | - |
|
Datasheet |
Tray | A6 | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
|
A2S1ASQ12VDC1.6DRELAY AUTO QC SHROUD SPST 12VDC |
122 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2S1ASQ24VDC1.6RRELAY AUTO QC SHROUD SPST 24VDC |
179 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

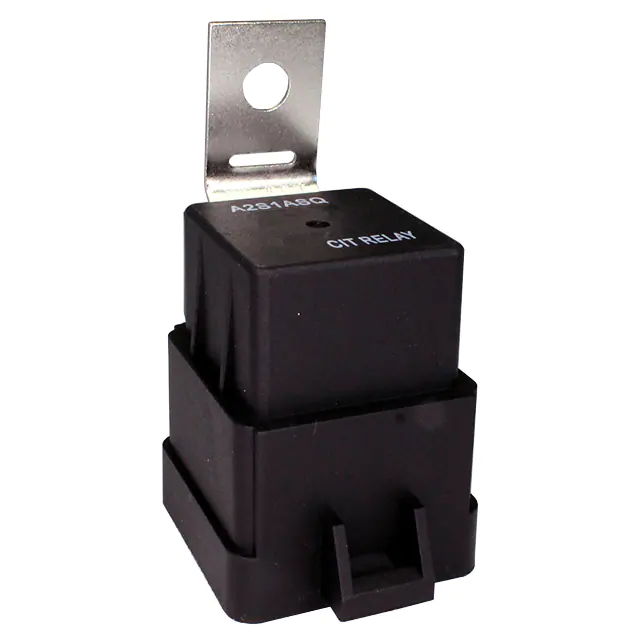

A2S1ASQ24VDC1.6DRELAY AUTO QC SHROUD SPST 24VDC |
146 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
ACNM7112SAZRELAY AUTOMOTIVE SPST 30A 12V |
212 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ACNM | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing |
|

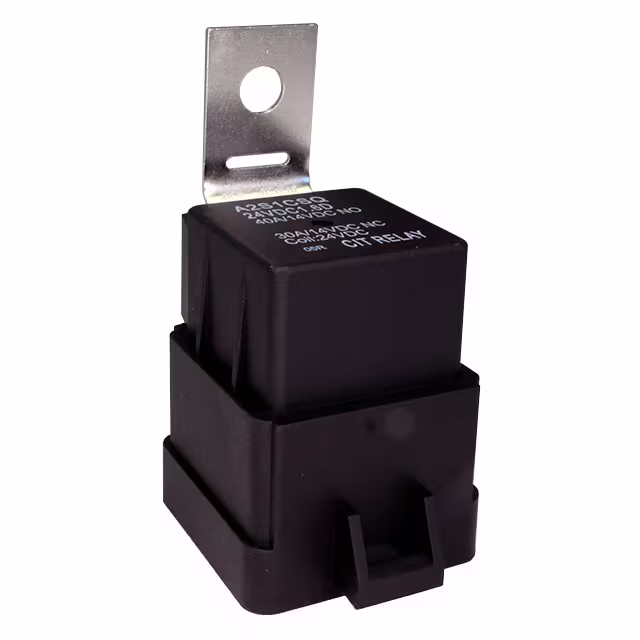

A2S1CSQ24VDC1.6DRELAY AUTO QC SHROUD SPDT 24VDC |
1,435 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

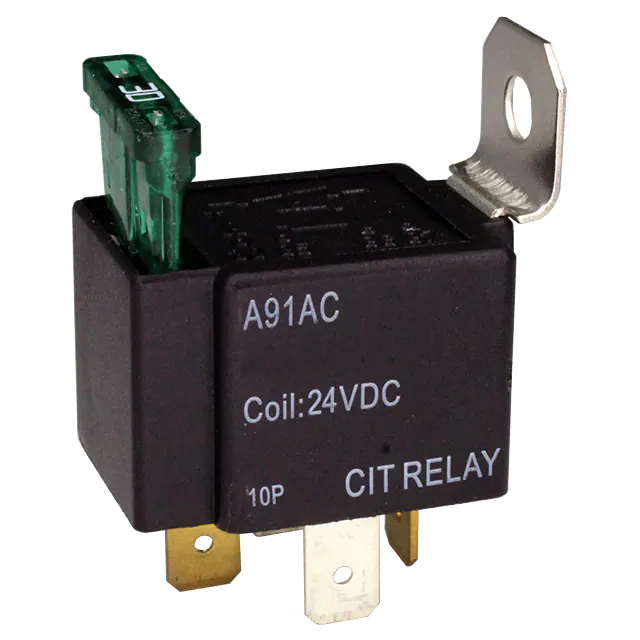

A91AC24VDCRELAY AUTO 30A FUSE SPST 24VDC Q |
435 | - |
|
Datasheet |
Tray | A9 | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

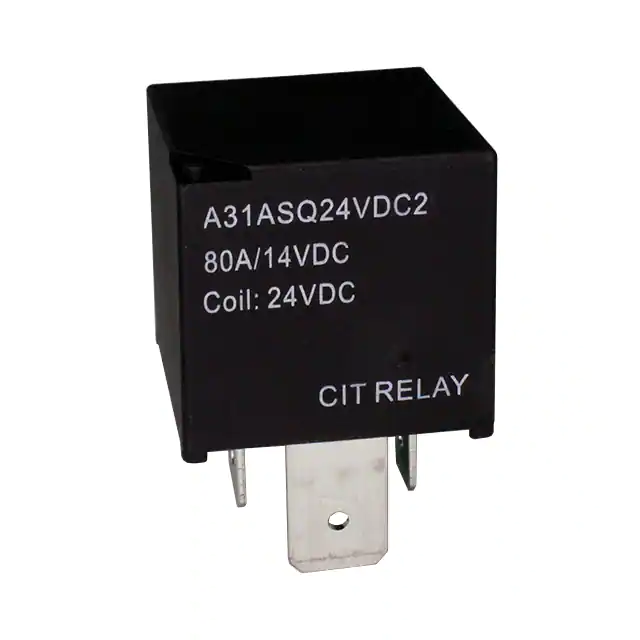

A31ASQ24VDC2RELAY AUTO HD SPST 24VDC QC |
344 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

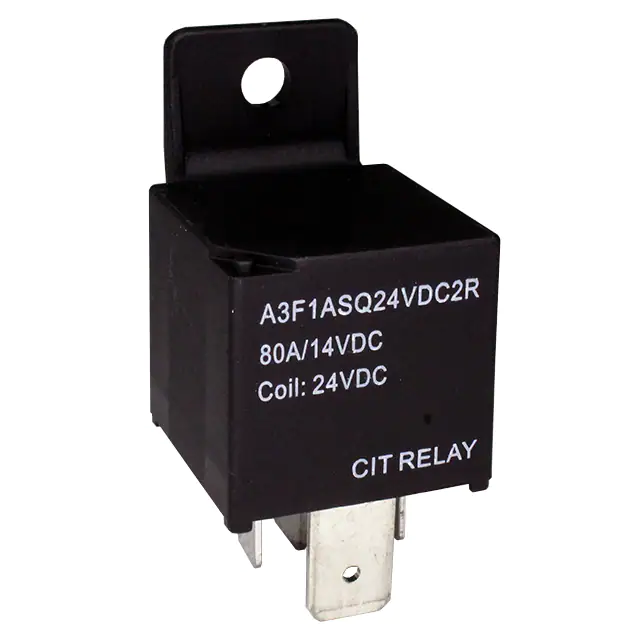

A3F1ASQ24VDC2RRELAY AUTO FLANGED HD SPST 24VDC |
531 | - |
|
Datasheet |
Tray | A3F | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
|

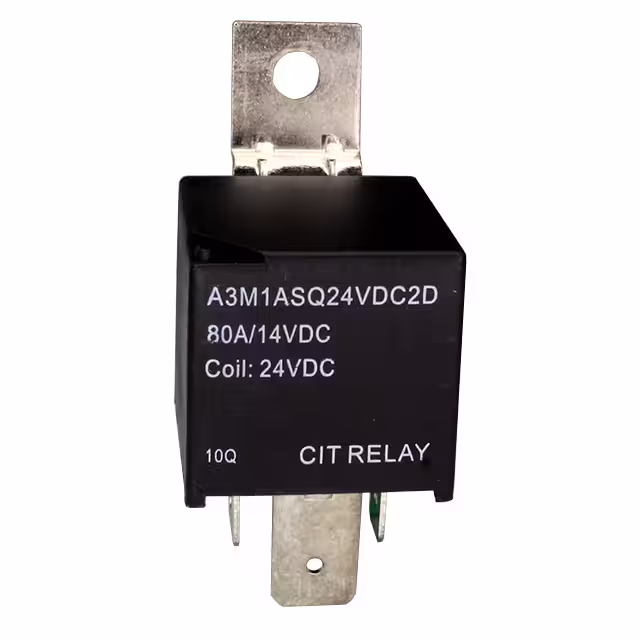

A3M1ASQ24VDC2DRELAY AUTO BRACKET HD SPST 24VDC |
410 | - |
|
Datasheet |
Tray | A3M | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
|
A3M1CSQ12VDC2RELAY AUTO BRACKET HD SPDT 12VDC |
467 | - |
|
Datasheet |
Tray | A3M | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
