Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1V-12VCB RELAY 1 FORM C 35A 12V |
2,550 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
CB1-R-WM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,157 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
CM1AF-12VRELAY AUTOMOTIVE SPST 35A 12V |
3,133 | - |
|
Datasheet |
Bulk | CM | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In |
|
CM1A-P-24VCM RELAY |
3,196 | - |
|
Datasheet |
Bulk | CM | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
CB1AV-24VCB RELAY 1 FORM A 35A 24V |
2,579 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
CM1AF-R-24VCM RELAY 1 FORM A 24V |
3,309 | - |
|
Datasheet |
Bulk | CM | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In |
|
ACV31212RELAY AUTOMOTIVE SPST 20A 12V |
2,805 | - |
|
Datasheet |
Tube | ACV | Last Time Buy | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In |
|
ACNM5112SAZRELAY AUTO SPDT 30A 12V |
2,101 | - |
|
Datasheet |
Tape & Reel (TR) | ACNM | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing |
|
CB1-R-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,091 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
|
CB1AF-R-P-24VRELAY AUTOMOTIVE SPST 20A 24V |
2,150 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Through Hole | PC Pin |
|
CM1F-24VCM RELAY 1 FORM C 24V |
2,476 | - |
|
Datasheet |
Bulk | CM | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In |
|
|
CB1VF-D-12VCB RELAY 1 FORM C 35A 12V |
3,931 | - |
|
Bulk | CB | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) | |
|
|
CB1VF-R-12VCB RELAY 1 FORM C 35A 12V |
2,227 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

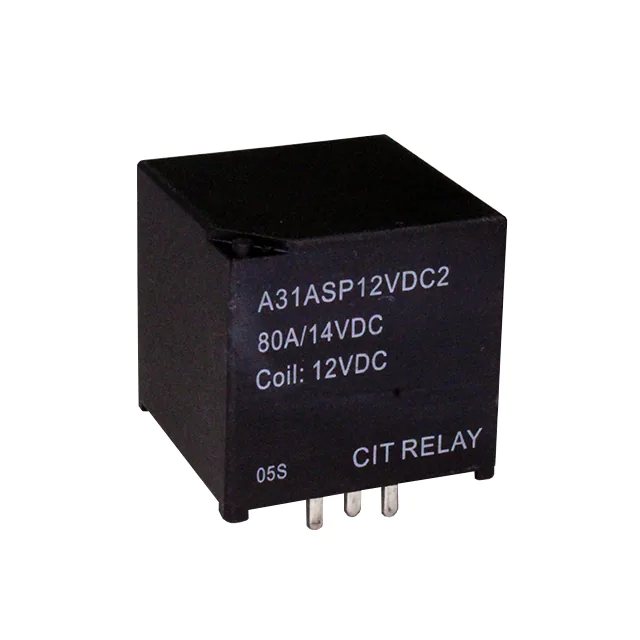

A31ASP12VDC2RELAY AUTO HD SPST 12VDC PCB |
3,813 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|

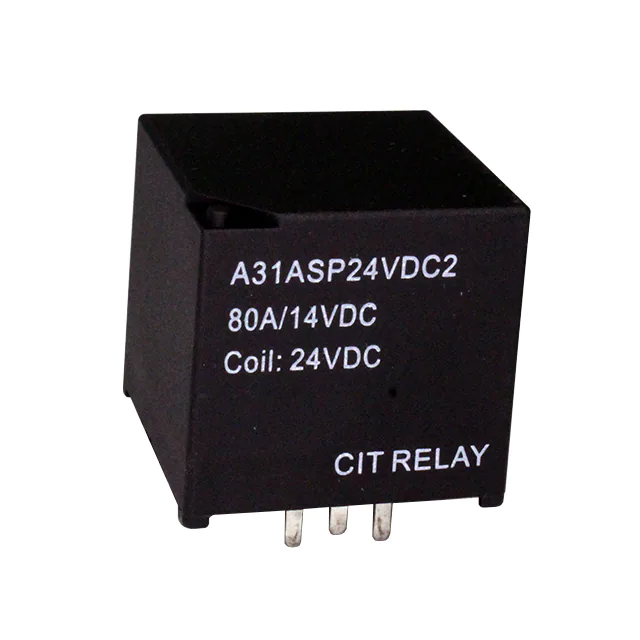

A31ASP24VDC2RELAY AUTO HD SPST 24VDC PCB |
3,341 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|

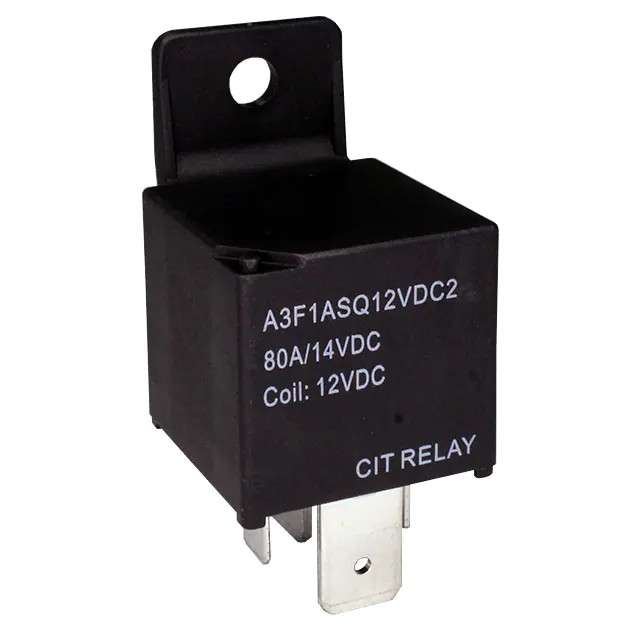

A3F1ASQ12VDC2RELAY AUTO FLANGED HD SPST 12VDC |
2,023 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
|

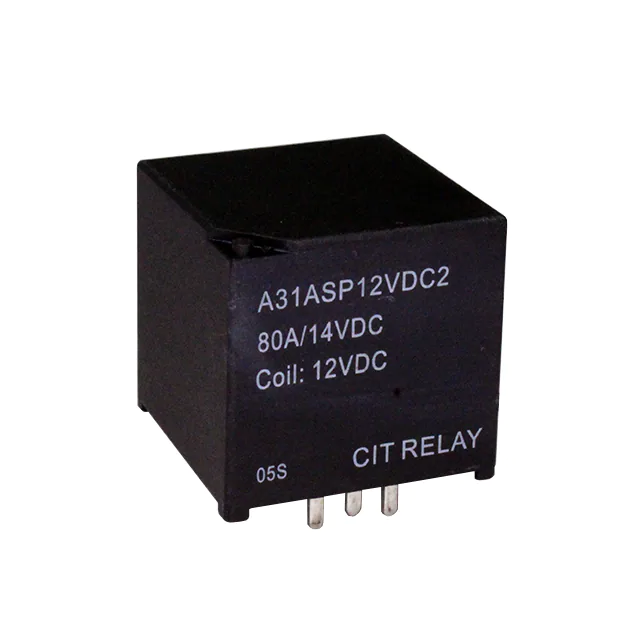

A31ASP12VDC2DRELAY AUTO HD SPST 12VDC PCB DIO |
2,094 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
|
CB1AVF-D-24VCB RELAY 1 FORM A 35A 24V |
2,401 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
CB1AVF-R-24VCB RELAY 1 FORM A 35A 24V |
3,723 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
CB1VF-24VCB RELAY 1 FORM C 35A 24V |
3,412 | - |
|
Datasheet |
Bulk | CB | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
