Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21CSQ6VDC1.6DRELAY AUTOMOTIVE SPDT 1C 6VDC 1. |
3,304 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

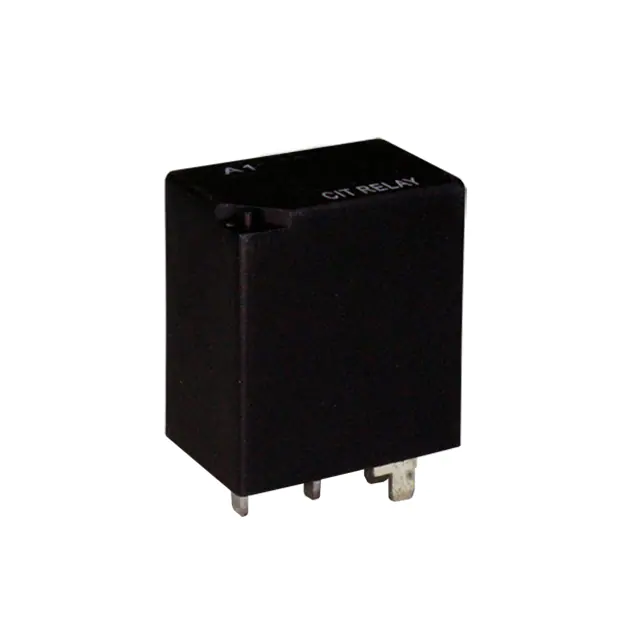

A11ASP48VDC1.2RRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|

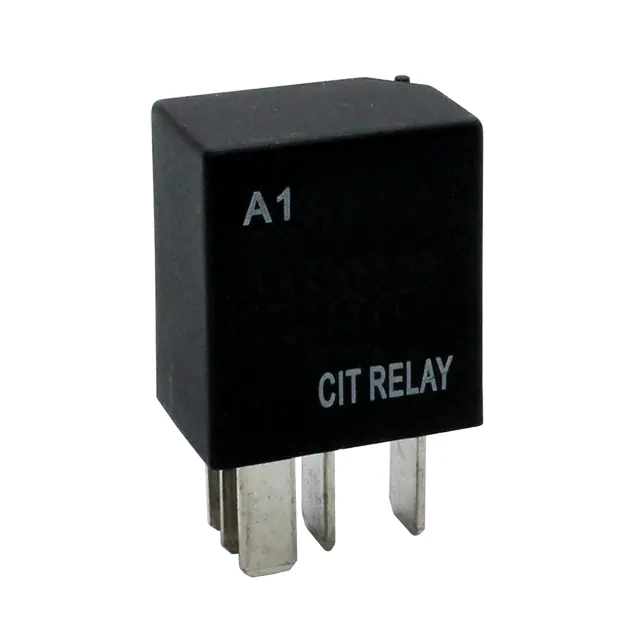

A11ASQ48VDC1.2RRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A11ASP48VDC1.2DRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
|
A11ASQ48VDC1.2DRELAY AUTOMOTIVE 30A SPST NO 1A |
460 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A2M1CSQ48VDC1.6RRELAY AUTOMOTIVE METAL BRACKET S |
100 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A31CCQ24VDC180AMP RELAY AUTOMOTIVE SPDT 1C 2 |
100 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A2M1CSQ6VDC1.6RRELAY AUTOMOTIVE METAL BRACKET S |
2,496 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A31CCQ24VDC1D80AMP RELAY AUTOMOTIVE SPDT 1C 2 |
3,836 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A31CCQ24VDC1R80AMP RELAY AUTOMOTIVE SPDT 1C 2 |
3,316 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A11CSP48VDC1.2RELAY AUTOMOTIVE 30A SPDT 1C 48V |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
A11CSQ48VDC1.2RELAY AUTOMOTIVE 30A SPDT 1C 48V |
360 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A11CSP48VDC1.2RRELAY AUTOMOTIVE 30A SPDT 1C 48V |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
|
A11CSP48VDC1.2DRELAY AUTOMOTIVE 30A SPDT 1C 48V |
497 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
|
A11CSQ48VDC1.2DRELAY AUTOMOTIVE 30A SPDT 1C 48V |
485 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A11CSQ48VDC1.2RRELAY AUTOMOTIVE 30A SPDT 1C 48V |
475 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
AZ980-1C-12DE80A SUPER-ISO AUTO RELAY |
3,274 | - |
|
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A2S1CSQ6VDC1.6RRELAY AUTOMOTIVE QUICK CONNECT S |
3,592 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
R53-1D30-6RELAY-30A-DC-SPST-6V |
2,521 | - |
|
Datasheet |
Bulk | R53 | Active | - | - | 6VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | - | - | - | PC Pin |
|
R53-5D20-6RELAY-20A-DC-SPDT-6V |
3,201 | - |
|
Datasheet |
Bulk | R53 | Active | - | - | 6VDC | SPDT (1 Form C) | 20 A | - | - | - | - | - | - | - | PC Pin |
