Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860020372002CAP ALUM 22UF 20% 16V RADIAL |
2,771 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 82.62 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020372003CAP ALUM 33UF 20% 16V RADIAL |
2,380 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 64 mA @ 120 Hz | 97.92 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020472001CAP ALUM 4.7UF 20% 25V RADIAL |
3,946 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 44.2 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020272001CAP ALUM 22UF 20% 10V RADIAL |
2,526 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 68.85 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
25ZL47MEFCT15X11CAP ALUM 47UF 20% 25V RADIAL |
14,746 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ZL | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 250 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-1HA2R2SRCAP ALUM 2.2UF 20% 50V SMD |
1,096 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 8 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UVY2A100MDD1TDCAP ALUM 10UF 20% 100V RADIAL |
41,543 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 10 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 100 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVK1E101MDD1TDCAP ALUM 100UF 20% 25V RADIAL |
23,810 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVY1C221MED1TDCAP ALUM 220UF 20% 16V RADIAL |
8,661 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVR1C331MPD1TACAP ALUM 330UF 20% 16V RADIAL |
3,974 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 555 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UVR0J101MDD6TPCAP ALUM 100UF 20% 6.3V RADIAL |
3,395 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 202.5 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UFW1J470MED1TDCAP ALUM 47UF 20% 63V RADIAL |
8,390 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UFW | Not For New Designs | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 165 mA @ 120 Hz | 330 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|

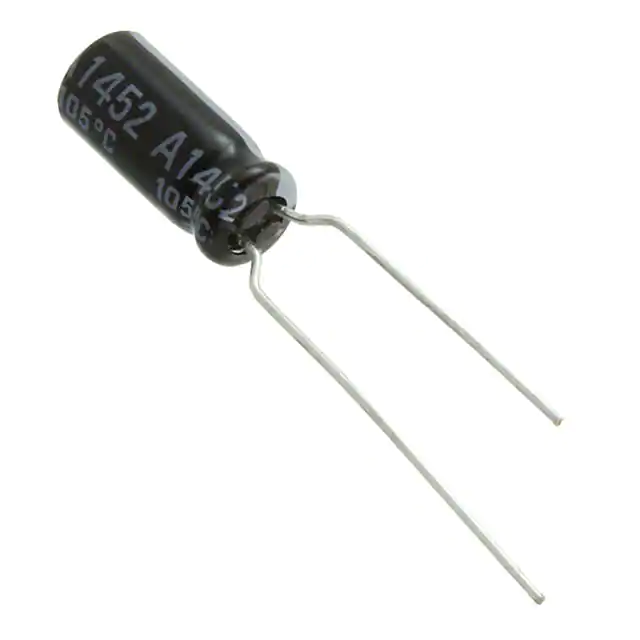

25YXJ47MTA5X11CAP ALUM 47UF 20% 25V RADIAL |
22,041 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | YXJ | Active | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 137.5 mA @ 120 Hz | 250 mA @ 100 kHz | 400 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVP1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL |
34,876 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVP | Not For New Designs | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

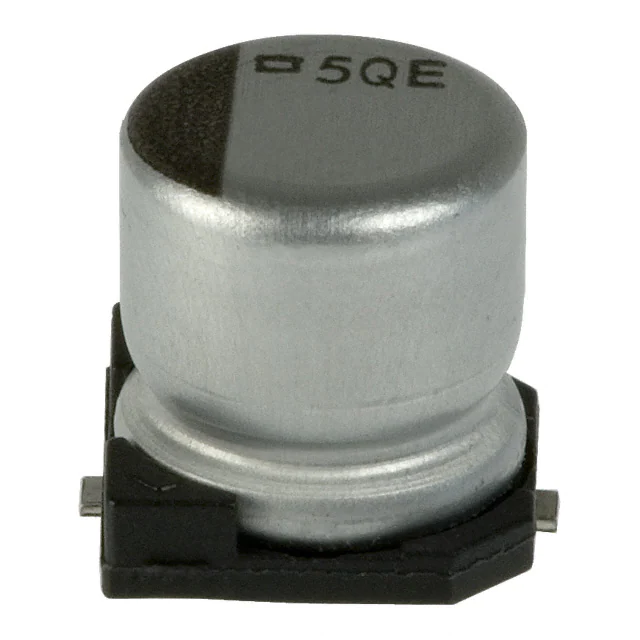

EMVE160ADA220ME55GCAP ALUM 22UF 20% 16V SMD |
191 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVE | Active | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.205 (5.20mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEE-HA1E4R7RCAP ALUM 4.7UF 20% 25V SMD |
1,098 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
860010672004CAP ALUM 0.47UF 20% 50V RADIAL |
18,238 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Active | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.5 mA @ 120 Hz | 12.75 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020372004CAP ALUM 47UF 20% 16V RADIAL |
4,502 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 153 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020672007CAP ALUM 3.3UF 20% 50V RADIAL |
4,054 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 36.4 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020672008CAP ALUM 4.7UF 20% 50V RADIAL |
4,721 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | 54.4 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
